Project Description

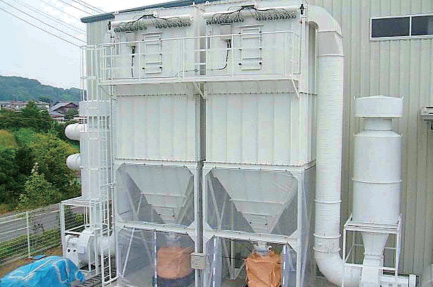

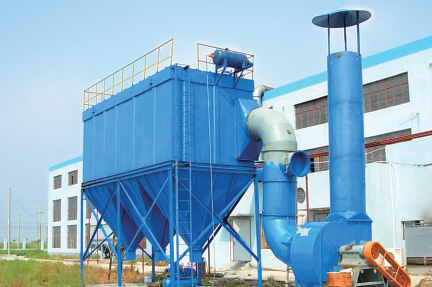

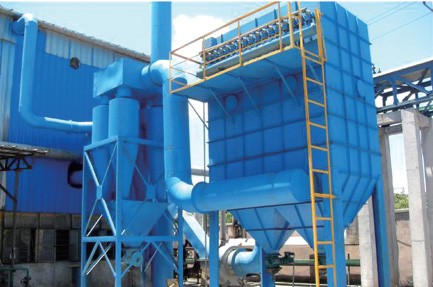

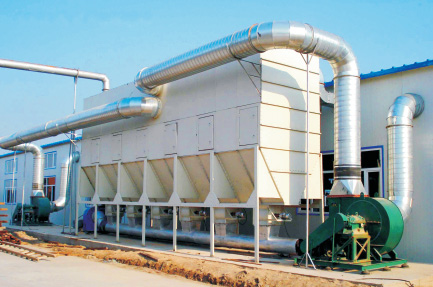

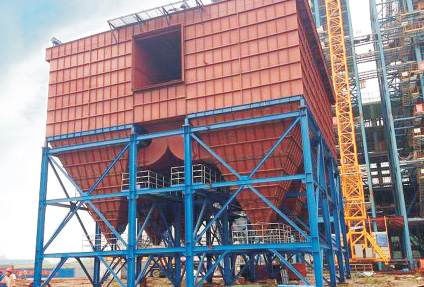

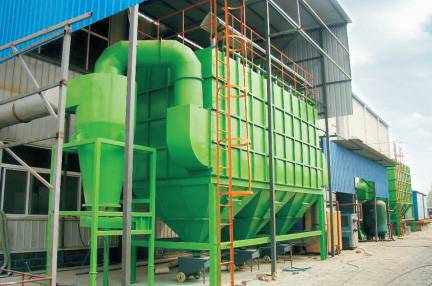

Baghouse dust collector
Baghouse dust collector
Advantage：
1. Less accessory equipment, less investment, low operating cost;
2. The off-line clean design; PLC program control by room cleaning, cleaning dust thoroughly, stable running;
3. Dust removal efficiency is high. Collect the dust of more than 0.3 UM, can make the dust gas to 15mg/m or below.
Schenmatic diagram
Technical Parameters
| Type | DMC-32 | MDC-48 | DMC-64 | DMC-80 | DMC-96 | DMC-120 | DMC-32B | DMC-48B | DMC-64B | DMC-80B | DMC-96B | DMC-120B | |
| Air volume(m/h³) | 1452-2178 | 2172-3258 | 2898-4347 | 3624-5436 | 4350-6525 | 5436-8150 | 1920-2880 | 2880-4320 | 3840-5760 | 4800-7200 | 5760-8640 | 7200-10800 | |
| Filter area(m²) | 24.4 | 36.2 | 48.3 | 60.4 | 72.5 | 90.6 | 32 | 48 | 64 | 80 | 96 | 120 | |
| Quantities of bags | 32 | 48 | 64 | 80 | 96 | 120 | 32 | 48 | 64 | 80 | 96 | 120 | |
| Size of bags(mm) | Φ130*1850 | φ130×2450 | |||||||||||
| Pulse value | Size | 25MM | 40MM | ||||||||||
| Quantity | 4 | 6 | 8 | 10 | 12 | 15 | 4 | 6 | 8 | 10 | 12 | 15 | |
| Filtration velocity(m/min) | 1.0-1.5 | ||||||||||||
| Resistance(pa) | <1200 | ||||||||||||
| Entrance dust concentration (g/nm³ ) | 200 | ||||||||||||
| Exit dust concentration (mg/nm³ ) | ≤30 | ||||||||||||
| Bearing pressure(pa) | 5000 | ||||||||||||
